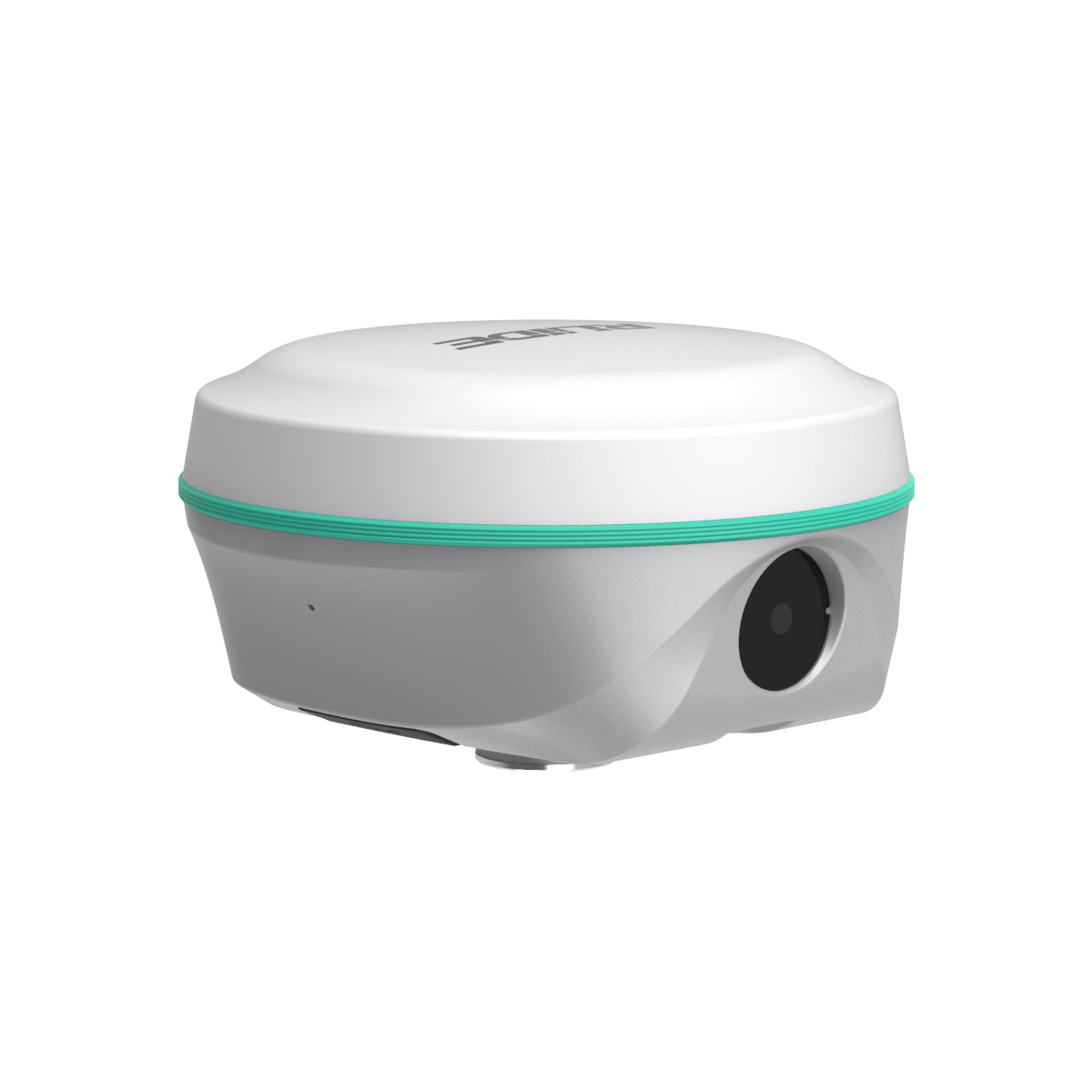

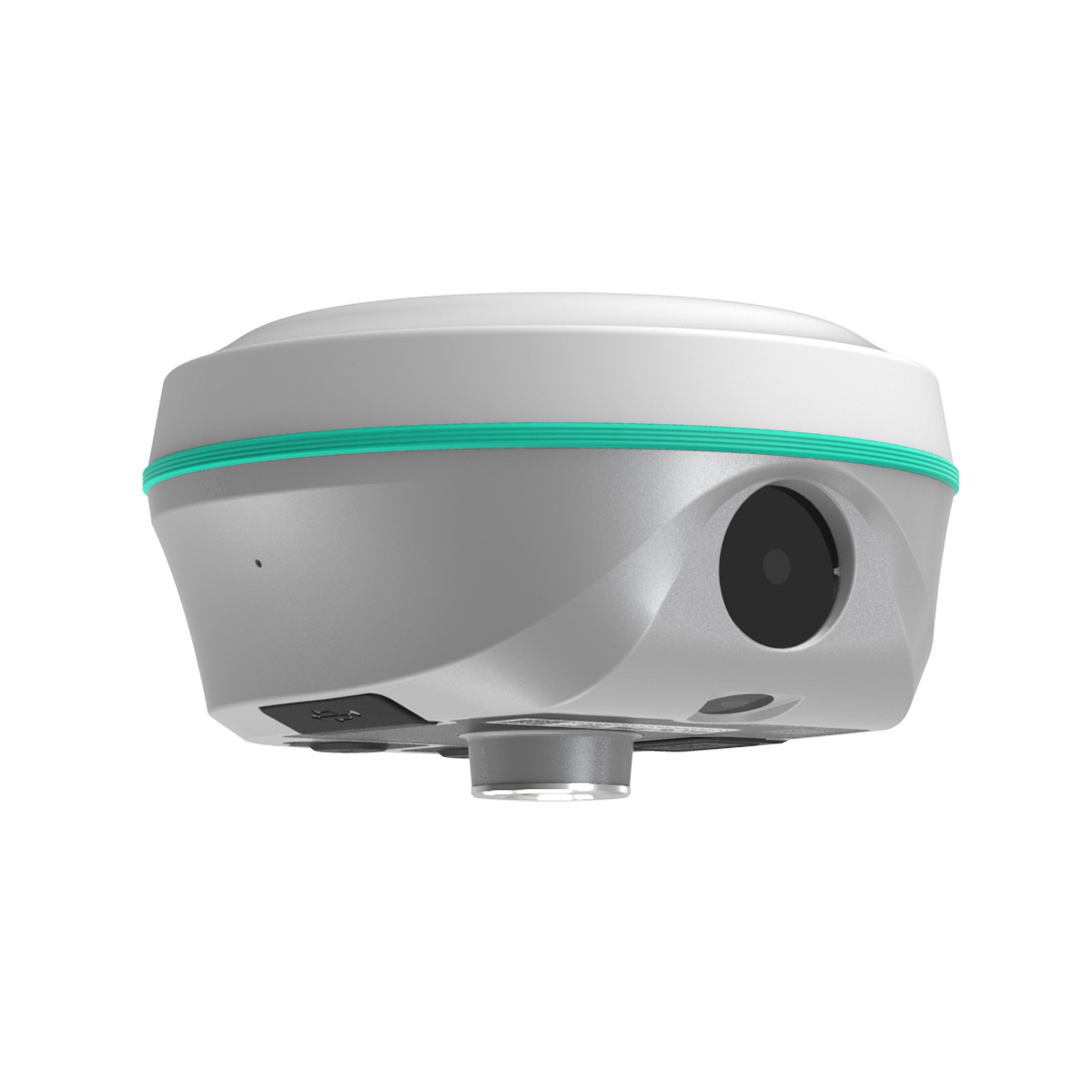

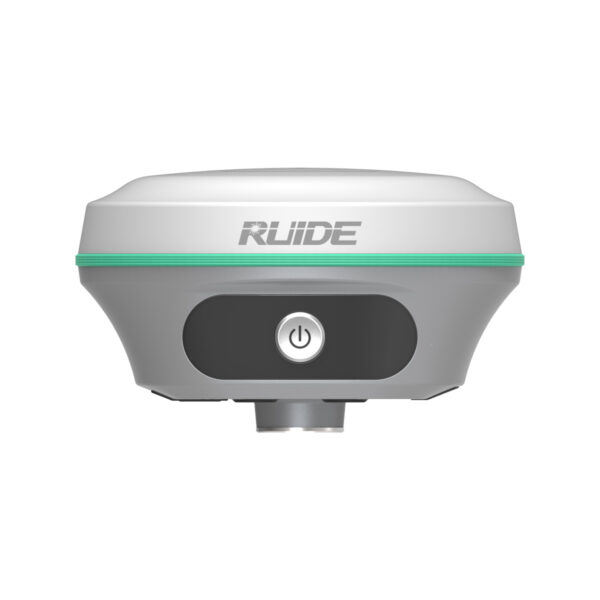

Ruide Reno2 Visual 3D

GPS (GNSS) receiver with 2 cameras for visual survey and AR stakeout
  • 3D visual survey via front camera
  • Obtaining a 3D model by taking photos or videos
  • AR stakeout using a combination of front and bottom camera
  • IMU 60° tilt, no calibration necessary
  • Multibrand radio Rx/Tx + Farlink radio up to 8 km
  • Lightweight (860g)
  • 7 constellations and 1,698 channels
  • RTK and PPK
  • Robust FIX connection in challenging environments (under trees, urban environments, near tall buildings)
  • Professional RTK GO field application included
  • GEO DataLab PC software included (3D modelling, coordinates, measurements, etc.)
  • 4G, Bluetooth and Wifi
  • Up to 12 hours battery life in Rover mode
  • IP68 protection (withstands drops of up to 2 m in height)



2.850,00 €

*VAT not included

Request an offer

Ruide Reno2 Visual 3D

Description

Topographic GPS (GNSS) receiver with Camera for 3D visual survey + Camera for AR stakeout. Ruide Reno 2. Average price.





TRY IT OUT FOR RENT ⟹

If you then buy it 50% of the amount paid for the rental is returned to you!





Video 1. Unboxing:



Video 2. Visual survey (Old building):







Specifications

PERFORMANCE
Satellites GPS: L1, L1C, L2C, L2P, L5

GLONASS: G1, G2, G3

BEIDOU: B1l, B2l, B3l, B1C, B2a, B2b

GALILEO: E1, E5A, E5B, E6C, AltBOC

QZSS; L1, L2C, L5

SBAS: L1

IRNSS: L5
Channels 1698
Positioning output speed 1 Hz - 20 Hz
Initialisation time < 10s



POSITIONING
Differential solution Horizontal 0.25 m + 1 ppm, Vertical 0.5 m + 1 ppm
Static accuracy Horizontal 2.5 mm + 0.5 ppm, Vertical 5 mm + 0.5 ppm
RTK accuracy Horizontal 8 mm + 0.5 ppm, Vertical 15 mm + 0.5 ppm
Accuracy PPK Horizontal 3 mm + 1 ppm, Vertical 5 mm + 1 ppm



PHYSICAL CHARACTERISTICS
Size 134 mm * 79 mm
Weight 0,86 kg
Operating temperature From -25 °C to 65 °C
Storage temperature From -35 °C to 80 °C
Protection IP68, protected against water and dust
Impact Withstands falls from a height of 2 metres onto concrete
Humidity 100% Moisture resistance



BATTERY
Fast charging Yes
Duration 12 hours in rover mode, 16 hours in static mode
Type Lithium-ion battery (Li-on)



PHYSICAL COMMUNICATIONS
USB Type-C Upload / Data transfer
SIM Micro-SIM
Antenna port UHF interface



WIRELESS COMMUNICATIONS
Radio: Transmission power 2 W (Tx/Rx)
Radio: Frequency range 410-470 MHz, with the ability to set frequency
Radio: Protocols Farlink, Trimtalk, SOUTH, HUACE, Hi-target, Satel
4G modem Embedded 4G full-frequency multi-band modem (Micro SIM), LTE FDD, LTE TDD, UMTS, GSM
WIFI IEEE 802.11 a/b/g/n/ac
Bluetooth Bluetooth 3.0/4.1 standard, Bluetooth 2.1 + EDR
NFC Yes



DATA FORMAT
Differential data RTCM 2.X, RTCM 3.X, CMR, NMEA
Static data STH, RINEX 2.x, RINEX 3.x
Output data VRS, FKP, MAC
Internet communication NTRIP



STORAGE
Memory 16 Gb (SSD) + External USB Flash Memory Pendrive



CAMERAS
Visual survey 8 Mpx (can also be combined in the AR Stakeout function)
AR Stakeout 2 Mpx



OTHER CHARACTERISTICS
Operating system LINUX
Access to Firmware WebUI
Voice guidance Yes (multiple languages)
Tilt compensation IMU up to 60° (uncalibrated)
Compatible controllers All Android devices



DESIGN
Button 1 * Power button
Indicators 1 * Battery Charge Indicator, 1 * Power Indicator, 1 * Data Indicator, 1 * Satellite Indicator
