Intec Marvel

GPS receiver (GNSS) with laser meter and two cameras

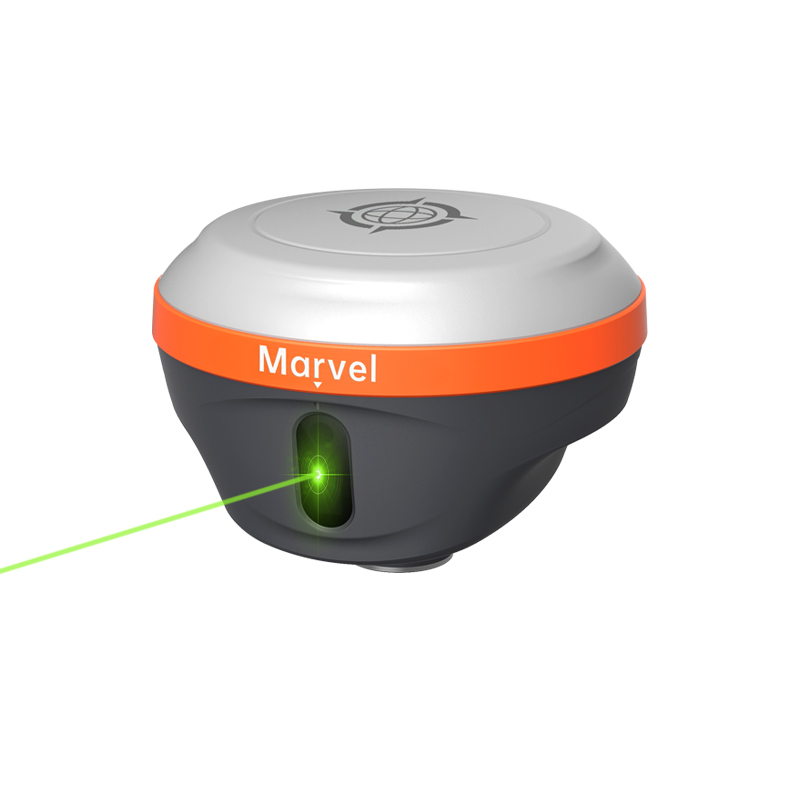

  • Powerful green laser, with recording of the X,Y,Z coordinates of the measured point in any orientation and inclination. Improved accuracy algorithm. Visible even on very sunny days and assisted by front camera.
  • Visual stakeout via bottom camera, with Augmented Reality (AR)
  • Super IMU up to 120° tilt, no calibration necessary
  • Can hold the FIX solution for 5 minutes, when internet connection is lost.
  • Lightweight (660g)
  • 7 constellations and 1,408 channels
  • RTK, PPK and PPP
  • Robust FIX connection in challenging environments (under trees, urban environments, near tall buildings)
  • Radio (compatible with leading brands), Wifi, 4G, NFC and Bluetooth
  • Professional field survey application InPad Field Survey
  • Up to 20 hours battery life
  • IP67 protection (against water and dust)

Request an offer

Intec Marvel Laser

Description

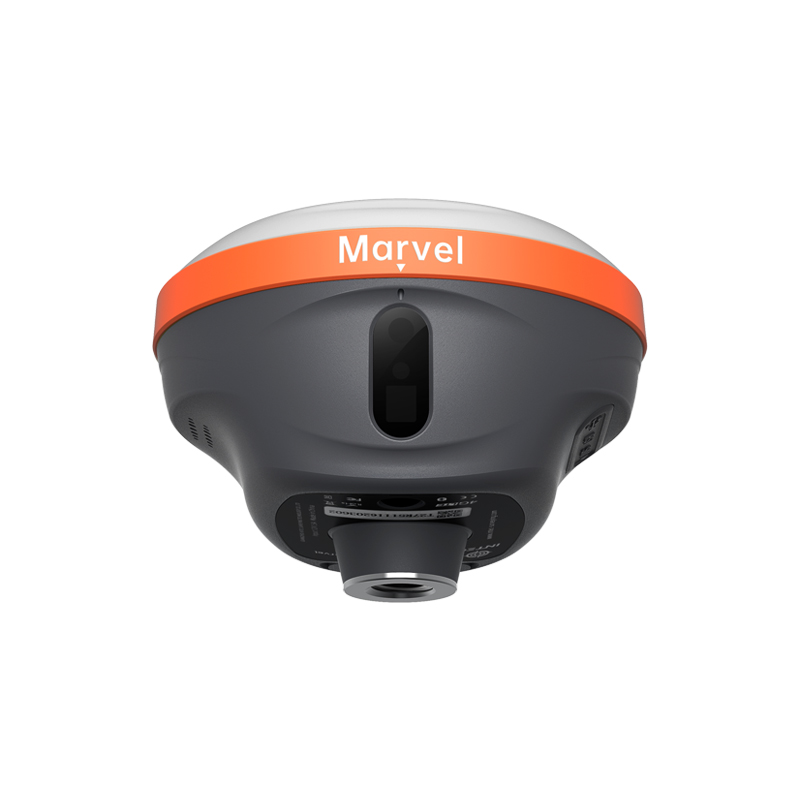

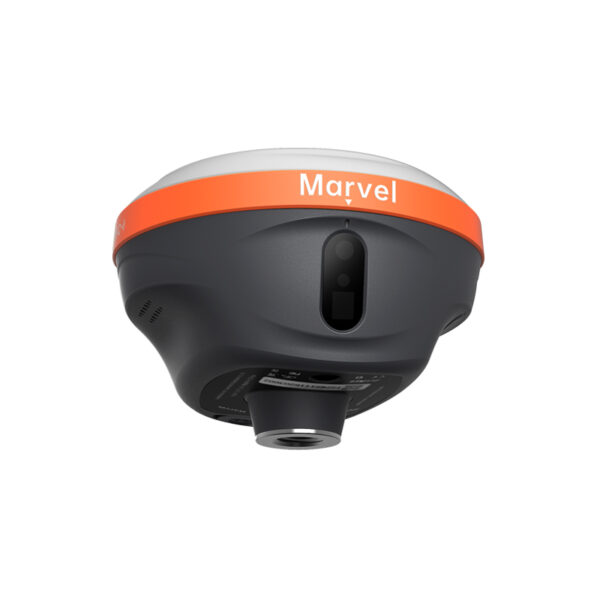

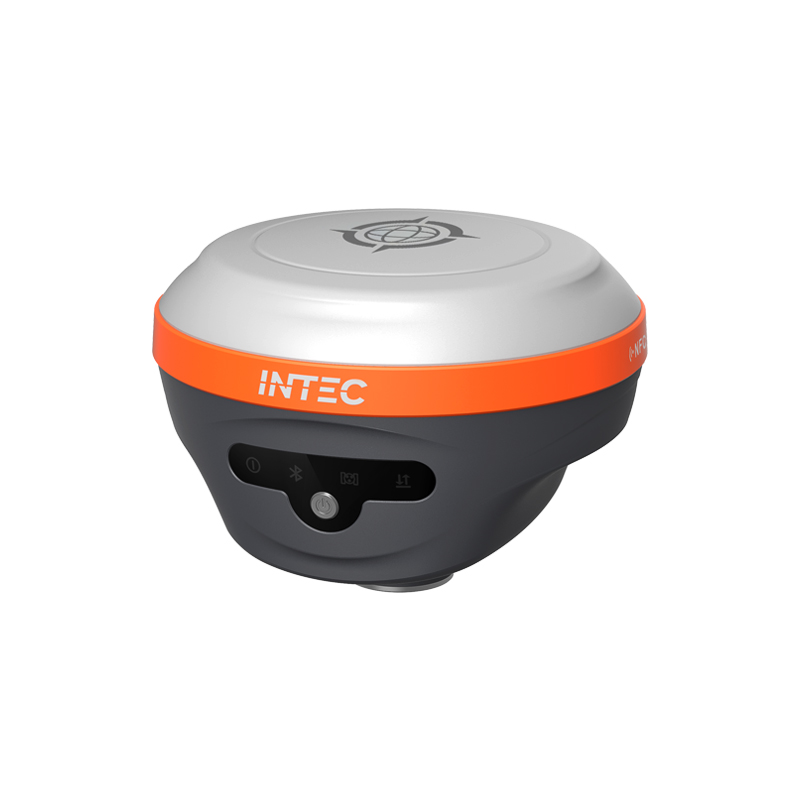

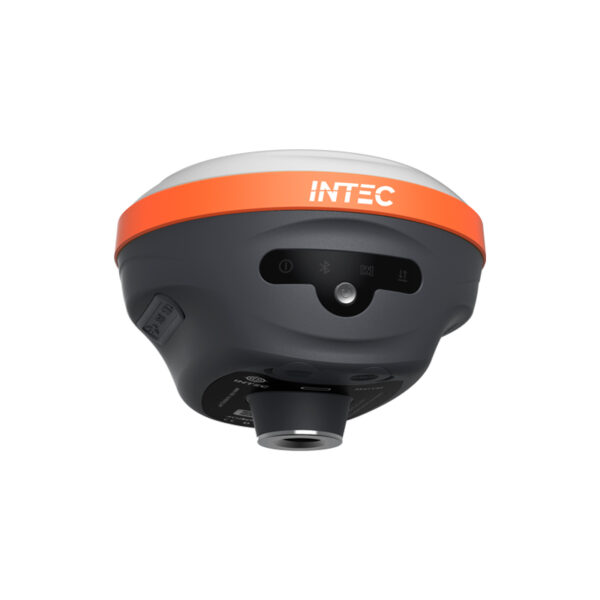

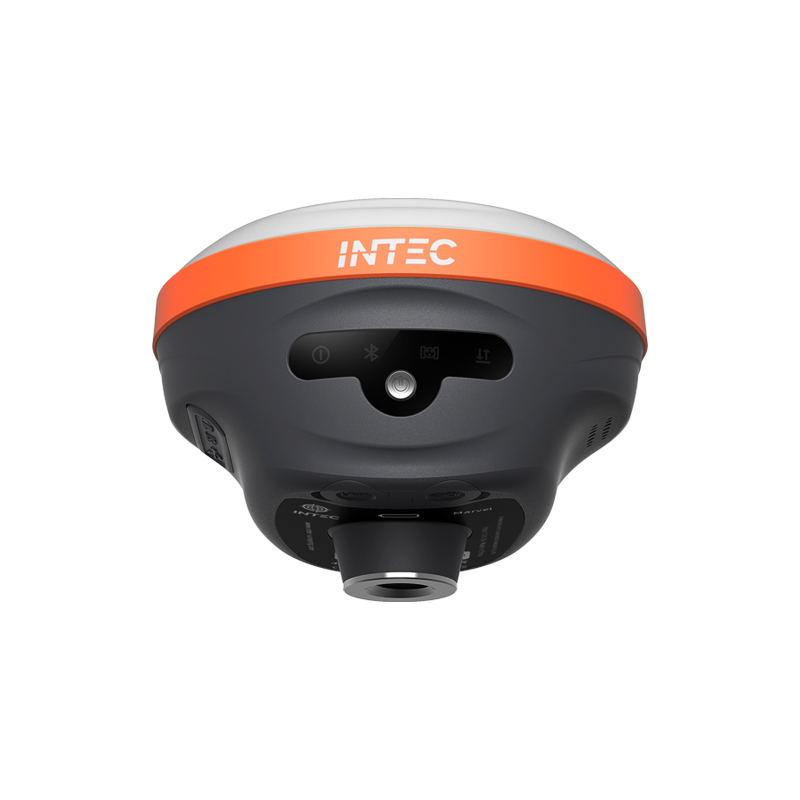

Topographic GPS receiver with integrated green laser meter and camera for image-assisted stakeout. Intec Marvel. The best value for money laser GNSS on the market.











Specifications

PERFORMANCE
Satellites GPS: L1, C/A, L2C, L2P, L5

GLONASS: L1, L2

BEIDOU: B1, B2, B3, B1C, B2a, B2b

GALILEO:The/E5a/E5b/E6

QZSS; L1/L2/L5/L6

SBAS: L1, L5
Channels 1408
Cold start <60 s
Quick start <5 s
Positioning output speed 1 Hz - 20 Hz
Signal recapture 3 s
RTK initialisation time 10 s
Reliability of supply 99,99%
Accuracy in time 20 ns



POSITIONING
Differential solution Horizontal 0.25 m + 1 ppm, Vertical 0.5 m + 1 ppm
Static accuracy Horizontal 2.5 mm + 0.5 ppm, Vertical 5 mm + 0.5 ppm
RTK accuracy Horizontal 8 mm + 0.5 ppm, Vertical 15 mm + 0.5 ppm



PHYSICAL CHARACTERISTICS
Material Magnesium alloy
Size 120 mm * 69 mm (+ 20 mm bottom mount)
Weight 0,66 kg
Operating temperature From -45 °C to 75 °C
Storage temperature From -55 °C to 85 °C
Protection IP67, protected against immersion for 30 minutes to a depth of 1m
Impact Withstands falls from a height of 1.80 metres onto concrete
Vibration MIL-STD-810G
Humidity 100% Moisture resistance



BATTERY
Fast charging Yes
Duration 20 hours in rover mode, 7.5 hours in base mode, 15 hours in static mode
Type Lithium-ion battery



PHYSICAL COMMUNICATIONS
Port LEMO External radio communication
USB Type-C Upload / Data transfer
SIM Nano-SIM support
Antenna port UHF interface



WIRELESS COMMUNICATIONS
Radio: Transmission power 1-2 W, switchable
Radio: Frequency range 410-470 MHz, with the ability to set frequency
Radio: Protocols TrimTalk450s, South, Satel, TrimmarkIII, Transeot, Intalk (LoRa)
4G modem Built-in 4G full-frequency multi-band full-frequency modem, supporting WCDMA/CDMA2000/TDDD-LTE/FDD-LTE
WIFI 802.11b/g, access point and client mode
Bluetooth Bluetooth V5.2 Classical / BLE Prorietary



DATA FORMAT
Differential data RTCM 2.X, RTCM 3x, CMR and CMR+, SCMRX



STORAGE
Memory 32 GB of internal storage, supports cyclic storage, with the ability to collect raw observations for 6 months based on a 5-second interval



LASER
High-precision range 15 m
Accuracy (ambient temperature) (3-5)mm + 1ppm



CAMERAS
Camera 1 (AR) 5 Mpx HD camera with wide viewing angle and live lofting support
Camera 2 (Laser assistance) 5 Mpx high definition camera with wide viewing angle for laser-assisted guidance



OTHER CHARACTERISTICS
Operating system LINUX
Tilt compensation IMU up to 120
Compatible controllers All Android devices



DESIGN
Button 1 * Power button
Indicators 1 * Power Indicator, 1 * Bluetooth Indicator, 1 * Data Indicator, 1 * Satellite Indicator
Voice Intelligent voice prompts
Web interface WebUI configuration support
Other Battery charge level indicator, when the device is switched off
