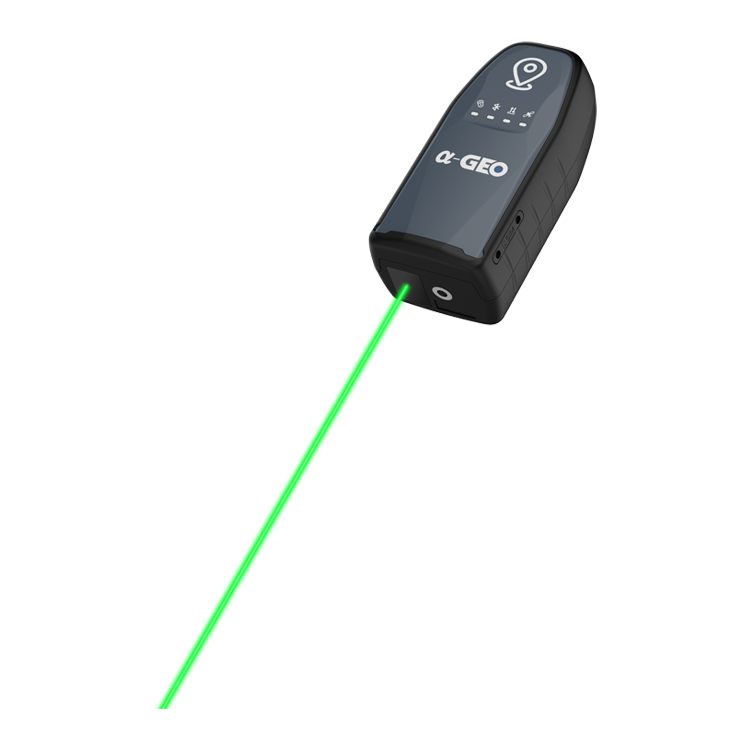

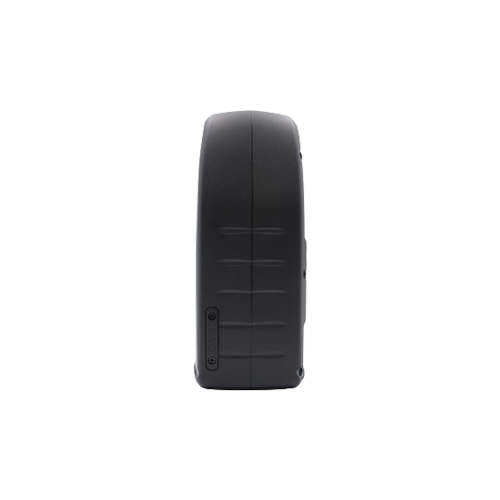

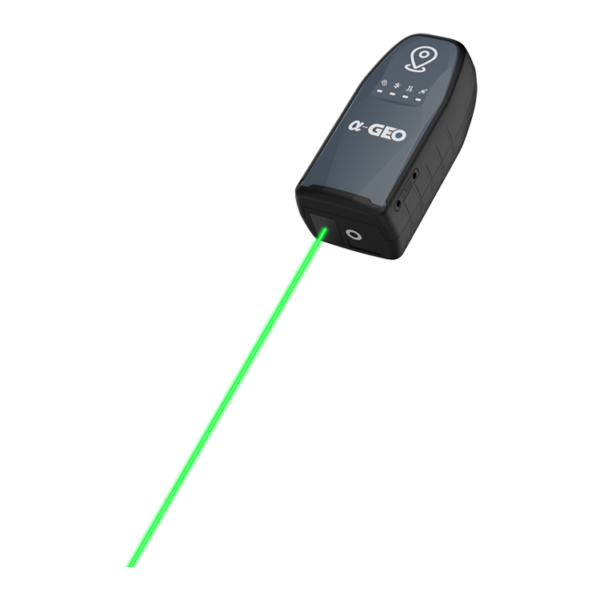

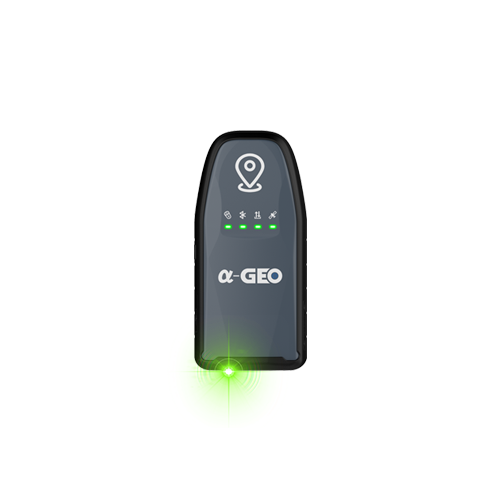

AlphaGEO GeoPuls Laser
GPS (GNSS) laser receiver
- Laser (up to 10m), with recording of the X,Y,Z coordinates of the measured point in any orientation and inclination
- Super IMU up to 120° tilt, no calibration necessary
- Can be carried in the hand or on a strap
- Ultra Lightweight (only 300g)
- Perfect for georeferencing buildings, quickly and easily. Ideal for the location and height of the bottom of wells or manholes.
- 6 constellations and 1,408 channels
- RTK and PPK
- Robust FIX connection in challenging environments (under trees, urban environments, near tall buildings)
- SurPro professional field application
- Up to 12 hours battery life
- IP67 protection (withstands drops of up to 2 m in height)
1.690,00 €
*VAT not included
AlphaGEO GeoPuls Laser
Description

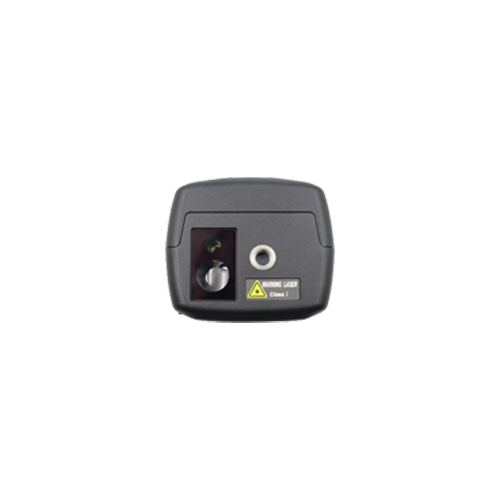

Topographic GPS receiver with integrated laser meter on the bottom, for recording inaccessible points in X,Y,Z coordinates. Can be hand-held or hand-held. Alpha GEO (a-GEO) GeoPuls. Low price.
If you then buy it 50% of the amount paid for the rental is returned to you!
Video 1. Unboxing:
Video 2. Presentation:
Video 3. Building georeferencing:
Video 4. Georeferencing of well bottoms:
Video 5. Georeferencing of trees:
Video 6. Use in pull-up:
Specifications
PERFORMANCE
| Satellites | GPS: L1, C/A, L2C, L2P, L5
GLONASS: L1, L2 BEIDOU: B1, B2, B3, B1C, B2a, B2b GALILEO:The/E5a/E5b/E6 QZSS; L1/L2/L5/L6 SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM |
| Channels | 1408 |
| Cold start | <60 s |
| Quick start | <15 s |
| Positioning output speed | 1 Hz - 50 Hz |
| Signal recapture | 1 s |
| RTK initialisation time | 5 s |
| Reliability of supply | 99,99% |
| Accuracy in time | 20 ns |
POSITIONING
| Differential solution | Horizontal 0.25 m + 1 ppm, Vertical 0.5 m + 1 ppm |
| Static accuracy | Horizontal 2.5 mm + 0.5 ppm, Vertical 5 mm + 0.5 ppm |
| RTK accuracy | Horizontal 8 mm + 0.5 ppm, Vertical 15 mm + 0.5 ppm |
PHYSICAL CHARACTERISTICS
| Material | Polymers |
| Size | 136 mm * 65 mm * 56 mm |
| Weight | 0,30 kg |
| Operating temperature | From -20 °C to 75 °C |
| Storage temperature | From -40 °C to 85 °C |
| Protection | IP67, protected against immersion for 30 minutes to a depth of 1m |
| Impact | Withstands falls from a height of 2 metres onto concrete |
| Vibration | MIL-STD-810G |
| Humidity | 100% Moisture resistance |
BATTERY
| Fast charging | Yes |
| Duration | 12 hours in rover mode |
| Type | Internal (3350 mAh) |
PHYSICAL COMMUNICATIONS
| USB Type-C | Upload / Data transfer |
| SIM | Nano-SIM support |
WIRELESS COMMUNICATIONS
| 4G modem | Built-in 4G full-frequency multi-band full-frequency modem, supporting WCDMA/CDMA2000/TDDD-LTE/FDD-LTE |
| WIFI | 802.11b/g, access point and client mode |
| Bluetooth | Bluetooth V5.2 Classical / BLE Prorietary |
DATA FORMAT
| Differential data | RTCM 2.X, RTCM 3x, CMR and CMR+, SCMRX |
LASER
| High-precision range | 10 m |
| Accuracy (ambient temperature) | 10 mm + 5 mm/m |
OTHER CHARACTERISTICS
| Tilt compensation | IMU up to 120 |
| Compatible controllers | All Android devices |
Related products
-

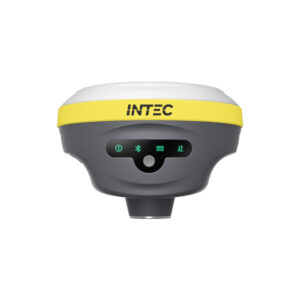

Intec Marvel Laser
View product -
Reno2 3D + H6
3.250,00 € View product -
Matrix II Laser + S60III
View product -
V1 + H6
2.340,00 € View product -
PozStar P5
View product -
PozStar S5
2.280,00 € View product -

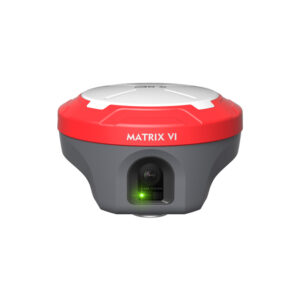

AlphaGEO Matrix VI Laser + Visual 3D
View product -

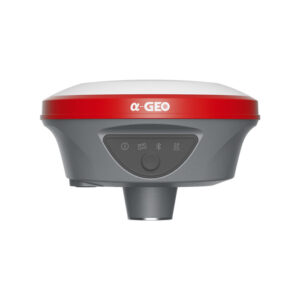

AlphaGEO L100
1.490,00 € View product -

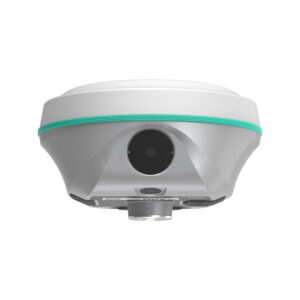

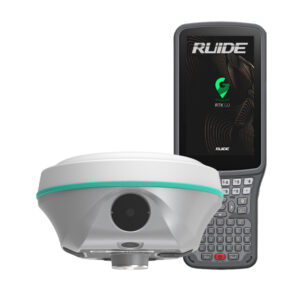

Ruide Reno2 Visual 3D
